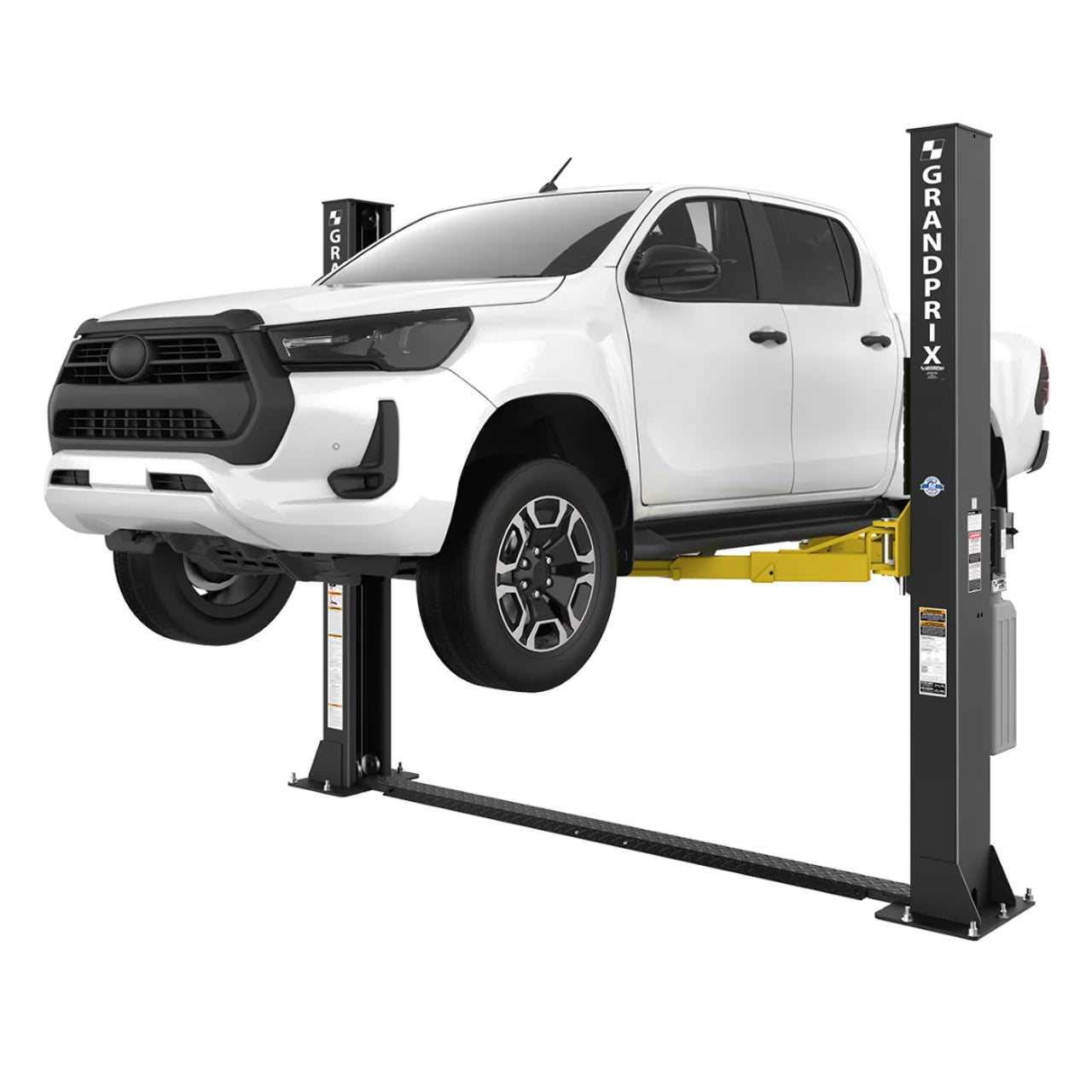

Bendpak GrandPrix GP-9LC 9,000 Lb. Capacity 2 Post Lift
The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do.
Features
- 9,000-lb. lifting capacity.
- Symmetric and asymmetric arm design for enhanced versatility.
- Triple-telescoping front arms & dual-stage extended rear arms.
- Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability.
- Heavy-duty 6″ x 6″ tubular steel carriage for maximum strength.
- Electric-hydraulic power system for effortless operation.
- Oversized 20.5″ x 15.5″ base plate for increased stability.
- Self-lubricating UHMW polyethylene guide blocks for long-lasting durability.
- Safety locks in each column spaced every 3 inches.
- Automatic arm restraints for enhanced safety.
- Heavy-duty 1/2″ aircraft-quality equalizer cables.
- Oversized cable sheaves to reduce cable fatigue.
- Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability.
- Full size rubber carriage guard reduces door dings.
- 4-piece 63mm stackable adapter set included.
- 10-piece concrete wedge anchors included.
Specifications
|  Lifting Capacity |  9,000 lbs. (4,082 kg) | |  Max. Capacity / Front Axle |  4,500 lbs. (2,045 kg) | |  Max. Capacity / Rear Axle |  4,500 lbs. (2,045 kg) | |  A – Height Overall |  109.5″ (2,781 mm) | |  B – Width Overall (at Baseplate) |  137.25″ (3,486 mm) | |  C – Width Outside of Columns |  127.5″ (3,238 mm) | |  D – Floor To Drive-over Height |  1.25″ (30 mm) | |  E – Width Inside Columns |  113.5″ (2,880 mm) | |  F – Front Arm Reach (Min.) |  22.5″ (571 mm) | |  F – Front Arm Reach (Max.) |  43.25″ (1,099 mm) | |  G – Rear Arm Reach (Min.) |  33.5″ (845 mm) | |  G – Rear Arm Reach (Max.) |  53.25″ (1,353 mm) | |  H – Min. Pad Height |  3.9″ (100 mm) | |   I – Rise |  70″ (1,778 mm) | |  J – Max. Lift Height (Pad + 63mm Adapt.) |  76.5″ – 78.5″ (1,943 – 1,994 mm) | |  K – Drive-Thru Clearance |  103″ (2,618 mm) | |  Screw Pad Adjustment |  2″ (51 mm) | |  Motor |  220 VAC / 60Hz / 1 Ph | |  Time of Full Rise |  65 seconds | |  Max. Load Per Arm |  2,250 lbs. (1,023 kg) | |  Shipping Weight |  1,385 lbs. (630 kg) | |
